Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size

Product Categories
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size

Brand Name : Unique-Tel

Model Number : Schuko-PDU

Certification : CE RoHs

Place of Origin : China

MOQ : 10 Pieces

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 1000 Pcs/Day

Delivery Time : 1 week

Packaging Details : 1 pcs per box, 24 boxes per carton

Amps : 16A

Volt : AC 250V

Power : 3500W

Frequency : 50 Hz

Output type : Schuko

Cable : 3m

Contact Now

Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19" 1U

Introduction

Euro Schuko Socket Rack PDUs provide reliable rack power distribution via a single input with multiple schucko sockets output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions.

In this particular range each socket is 'Schuko' style, manufactured in accordance with the DIN49441 standard, the 2 metre input lead is terminated with a 16AMP rated 2 time circular pin DIN49441 plug top.

Our 19 inch rack mountable PDU has a 1U profile and is made from aluminum. With 10(Max.42) Euro (schuko style) sockets. The PDU has a 1.8 meter cable and also comes with on and off switch along with a switch cover for extra safety.

In the vertical configuration, the maximum PDU height is 2200 mm and the maximum number of C13 outlets is 42.

Features

  • Horizontal 1.5U and vertical option
  • Up to 12 sockets per unit(Max.42 vertical)
  • Both vertical and horizontal mounting options
  • 250 volt AC, 50/60Hz Rating
  • French / Benelux type E sockets
  • German Schuko type F sockets
  • Shrouded switch with switch cover
  • 3-metre 1.5mm lead to universal Schuko plug (French and German as above)

Specifications

Number of sockets 8(4-42 optional)
Sockets type schuko female
Mounting direction Horizontal/Vertical
Compatibility rack cabinet 19''
Units 1
Maximum load (W) 3,500 Watt
output current 16 A
Voltage AC 230 V
Frequency 50 Hz
Cable length 3 m
Alimentation cable H05VV-F 3G 1.5 mm²
Button Light on/off button(optional)
Temperature 0 ~ 45 Celsius degree
Humidity 0% ~ 90%

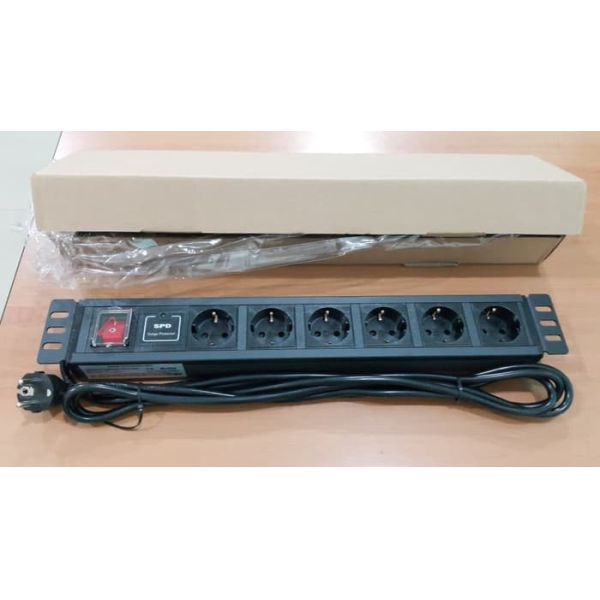

Product Picture

Euro Schuko Socket PDU Power Distribution Unit Vertical Installation PDU 19 " 1U Size
